Spiro Match was developed for workpieces with significantly different surface area ratios between the top and bottom sides. The function automatically adjusts the grinding parameters to the component geometry, thereby supporting a uniform material removal on both sides.

This shortens process development time, reduces scrap, and increases stability, even when the cutting performance of the grinding wheels changes during the ongoing process.

The challenge

• Different surface areas on the top and bottom make double-sided fine grinding more difficult.
• Grinding wheel speeds are currently adjusted manually via the HMI.
• Until optimal parameters are found, 3–4 batches may become scrap.
• If the cutting performance of the grinding wheel changes, parameter tuning often must start over.

The new function

• Analyzes the load on the drives directly during the process.
• Supports rapid adjustment of the speed ratio to ensure uniform material removal on both sides.
• Reduces manual setup effort and makes process optimization significantly more efficient.
• Helps to return more quickly to a stable process state even when the cutting performance changes.

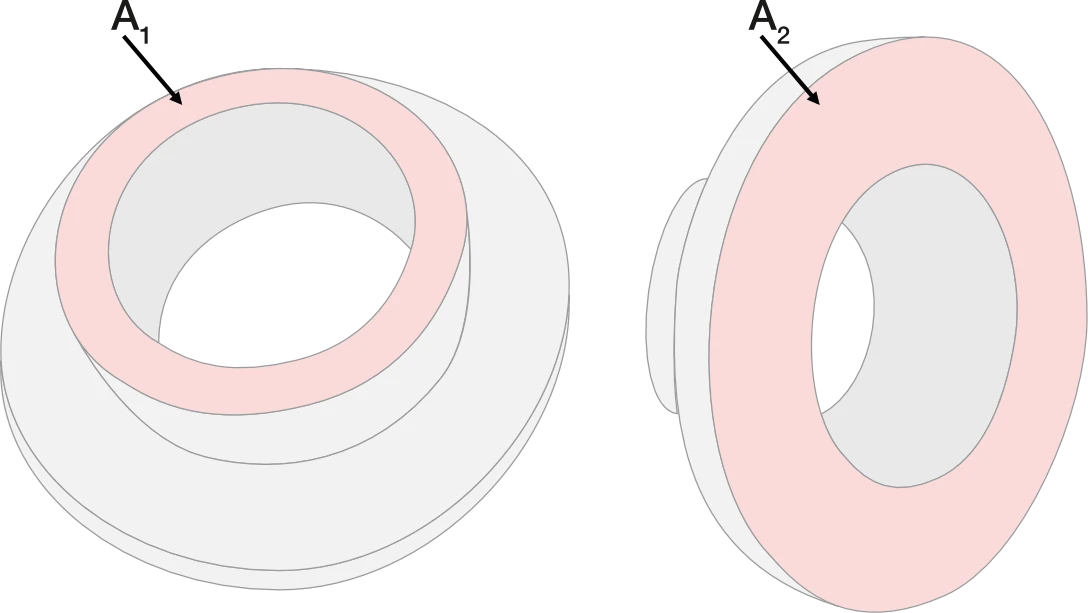

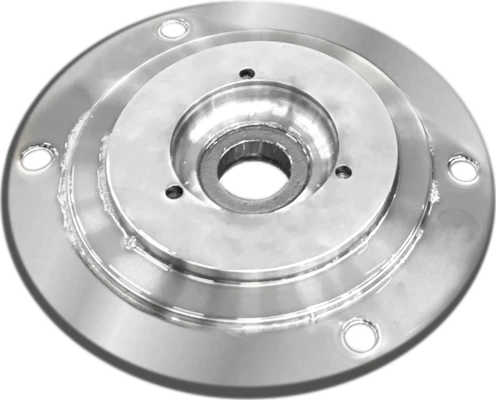

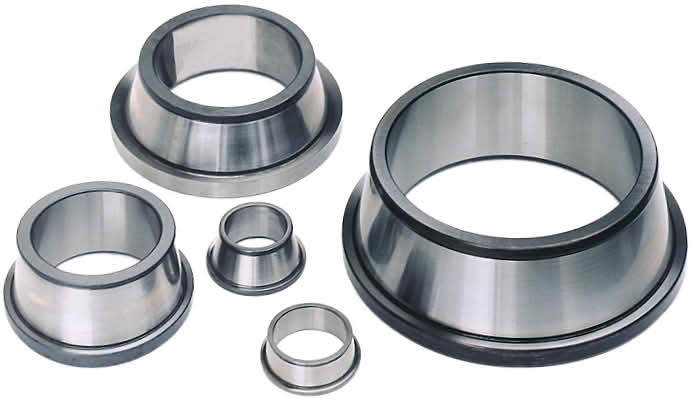

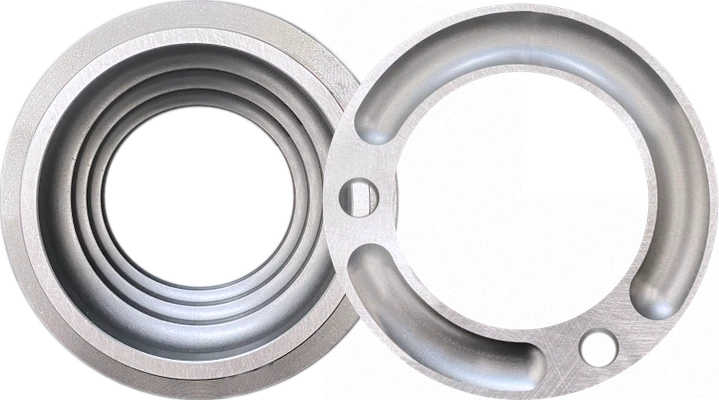

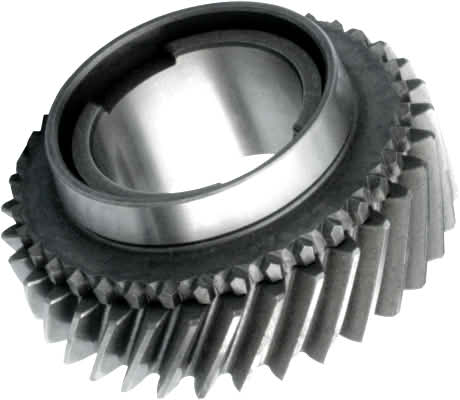

Components whose underside has significantly more contact or grinding surface than the top side.

The new Spiro Match technology is not only available for new machines but can also be retrofitted to existing Supfina Spiro machines.

• Faster to the right settings
  Less time needed to achieve a stable process.
• Less scrap
  Fewer defective parts during ramp-up and readjustments.
• More stable results
  More consistent material removal, even when wheel cutting performance changes.
• Less manual intervention
  Reduced HMI adjustments and lower operator workload.
